Designing with Dimensions: Rapidly Deployable Container Solutions for Workforce Housing & Commercial Use

Shipping container floor plans are the ultimate solution for demanding sectors requiring rapidly deployable, durable, and cost-effective accommodations. At H2A Homes, we specialize in converting these robust steel structures into everything from private executive suites to full-scale workforce housing man camps and functional commercial spaces.

The strength and modularity of these containers offer immediate, code-compliant solutions for projects across the country.

MAGNUM STEEL ADVANTAGES (Key Specifications)

Feature	Detail / Specification
Standard Sizes	8×10, 8×20, 8×40 (custom options available)
Exterior Coating	3-step DTM steel coating (Sherwin-Williams) for durability & clean finish
Windows	Low-E windows with options for observation, privacy, and burglar bars
Doors	10-point locking steel doors with upgraded security hardware
Insulation	Full-envelope insulation (Kraft-Faced R-11) for comfort & efficiency
HVAC	PTAC standard; mini-split available for quieter, efficient zones
Electrical	NEC/IBC compliant; transfer switch with grid & generator plug
Interior Finish	Vinyl gypsum wall panels; commercial-grade vinyl plank flooring
Construction	Fast, in-house build & QC by experienced technicians — rapid deploy to site

Floor Plan Layouts

Open Concept/Dormitory: A simple, open floor plan that can be used for sleeping quarters or a large, flexible space.
Bunk/Shared Accommodation: A dormitory-style unit with multiple individual beds/bunks, likely for workforce housing.

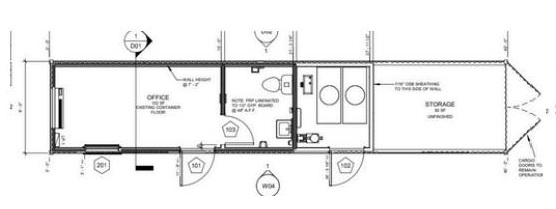

Office & Support Unit 1: A multi-functional plan featuring a dedicated office space, a storage room, and an ablution block (bathroom/laundry/utility area).

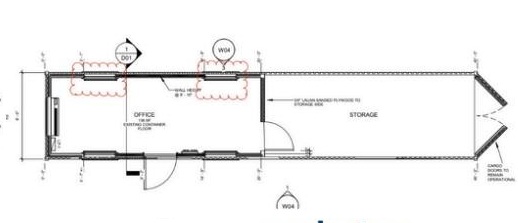

Office & Support Unit 2: A variation with an office space, a larger storage area, and a separate, smaller utility/washroom area.

Workforce Housing & Remote Accommodations (Man Camps)

For industries like oilfield, solar, wind, mining, and agriculture (farm worker housing), the need for immediate, high-quality, and scalable housing is critical. Our containerized solutions solve the logistical nightmare of remote site accommodation.

INDUSTRY	Layout Focus & Features	Key Benefits: Cost, Speed, Durability
Container Homes for Oilfield Workers / Oil Field Housing / Remote Man Camps	Dormitory Style: 40ft containers divided into 2-4 individual sleeping quarters. Centralized bathroom/shower unit (Ablution Block) for large camps.	RAPID DEPLOYMENT: Delivered move-in ready to remote locations. DURABILITY: Built from Corten steel to withstand harsh weather and repeated transport. COST-EFFECTIVE: Significant savings over temporary stick-built or long-term hotel stays.
Farm Worker Housing / Agricultural Laborer Accommodation / Affordable Container Housing	Residential Suites: 20ft or 40ft units configured as small, private apartments with kitchenette and en-suite bath. Can be configured into duplex or quadplex models by joining side-by-side.	COMPLIANCE: Built to meet local housing regulations for agricultural labor. CLEAN & SECURE: Durable, easily sanitized interiors with robust security. SCALABLE: Easily add or remove units based on seasonal labor demands.
Solar & Wind Energy Workforce Housing / Temporary Site Offices / Renewable Energy Field Camps	Combination Units: Half office/storage, half sleeping quarters (e.g., a 40ft unit split). Focus on integration with off-grid solar power and battery storage solutions.	OFF-GRID READY: Easily integrate roof-mounted solar panels for energy independence, crucial for remote sites. PORTABLE: Easily relocated as the project moves to the next phase (Wind Farm / Solar Array). MINIMAL SITE IMPACT: Requires only a flat, stable surface (gravel/piers).

Commercial & Residential Accommodations

Beyond temporary housing, containers are ideal for creating functional spaces that blend with traditional construction.

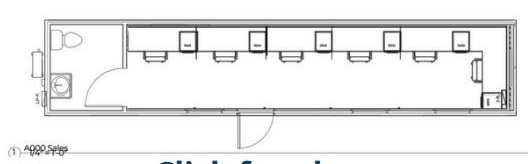

1. Office Workstations

Single Container (20ft/40ft) Open Office: Galley layout with desks along one long wall, ensuring a clear central pathway. Use high-cube (9.5ft tall) containers to avoid any feelings of claustrophobia.
Multi-Container Workspace: Joining two 40ft containers doubles the width, providing room for cluster seating, central collaborative tables, and more traditional office floor plans.

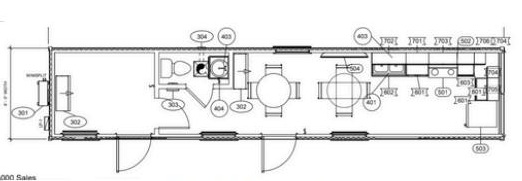

2. Break Rooms and Kitchenettes

Layout Focus: A linear design separating the appliance/prep area (cabinets, sink, microwave) from the dedicated seating area.
Design Element: Built-in bench seating and space-saving furniture are key to maximizing social space within the container’s footprint.

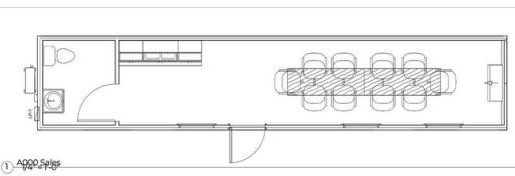

3. Conference Rooms & Meeting Spaces

Small Conference Room: A single 40ft unit dedicated to a boardroom table, perfect for on-site meetings. We prioritize soundproofing and professional-grade multimedia connectivity.
Modular Meeting Hubs: Connect two containers end-to-end or side-by-side for a larger training or presentation facility. Large glass glazing/windows create a spacious, professional feel.

4. Sleeping Quarters (Private/Executive Suites)

Layout: Private 20ft units offering a compact bedroom, living area, and a private ensuite bathroom (toilet, vanity, shower).
Design Focus: Higher-end finishes, mini-split HVAC, and full insulation provide the comfort and quiet expected for managers, executives, or long-term residents.

Why Choose Container Solutions? (The H2A Advantage)

Speed & Efficiency: Built off-site in a controlled factory environment, our units reduce construction time by up to 50% compared to traditional methods.
Durability: Made from commercial-grade steel, our structures are inherently resilient to severe weather, pests, and fire.
Sustainability: We repurpose materials, making our container solutions an eco-friendly, sustainable building alternative that helps reduce your project’s environmental footprint.
Flexibility: Our modular units can be stacked (up to 3 high), joined, and easily moved, allowing your infrastructure to scale and relocate as your project needs change.

Start Planning Your Layout Today!

Ask about our MAGNUM Containers

View our photo galleries and floor plans on H2AHomes.com to see how these versatile layouts translate into finished, high-quality, modern spaces. Contact us for a quote on your next remote workforce or commercial project.
